Why the 536SDX?

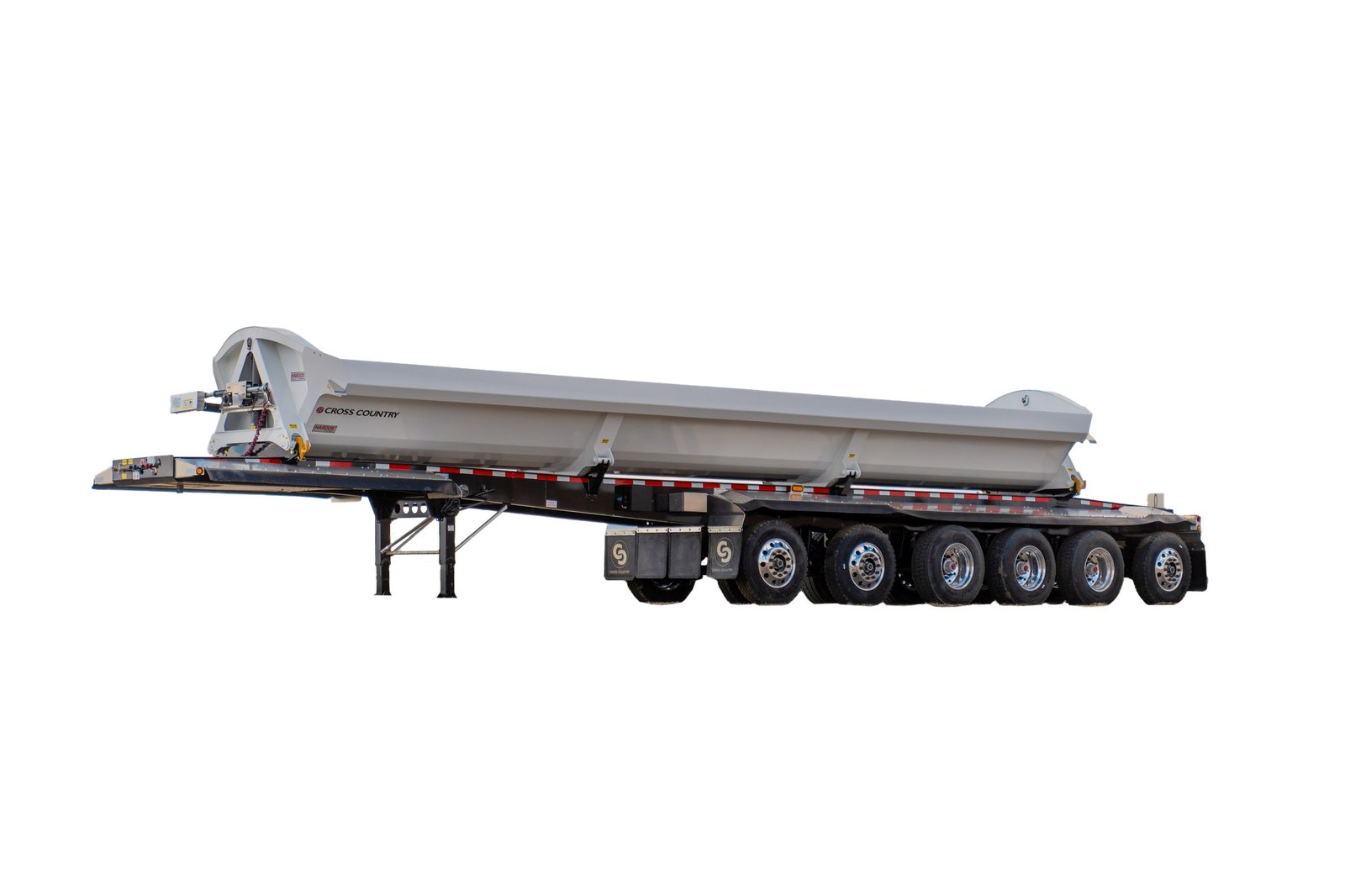

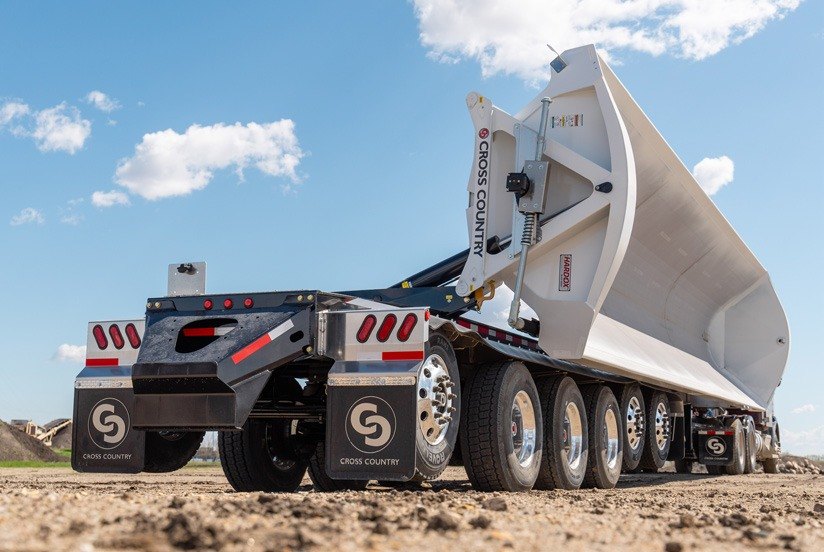

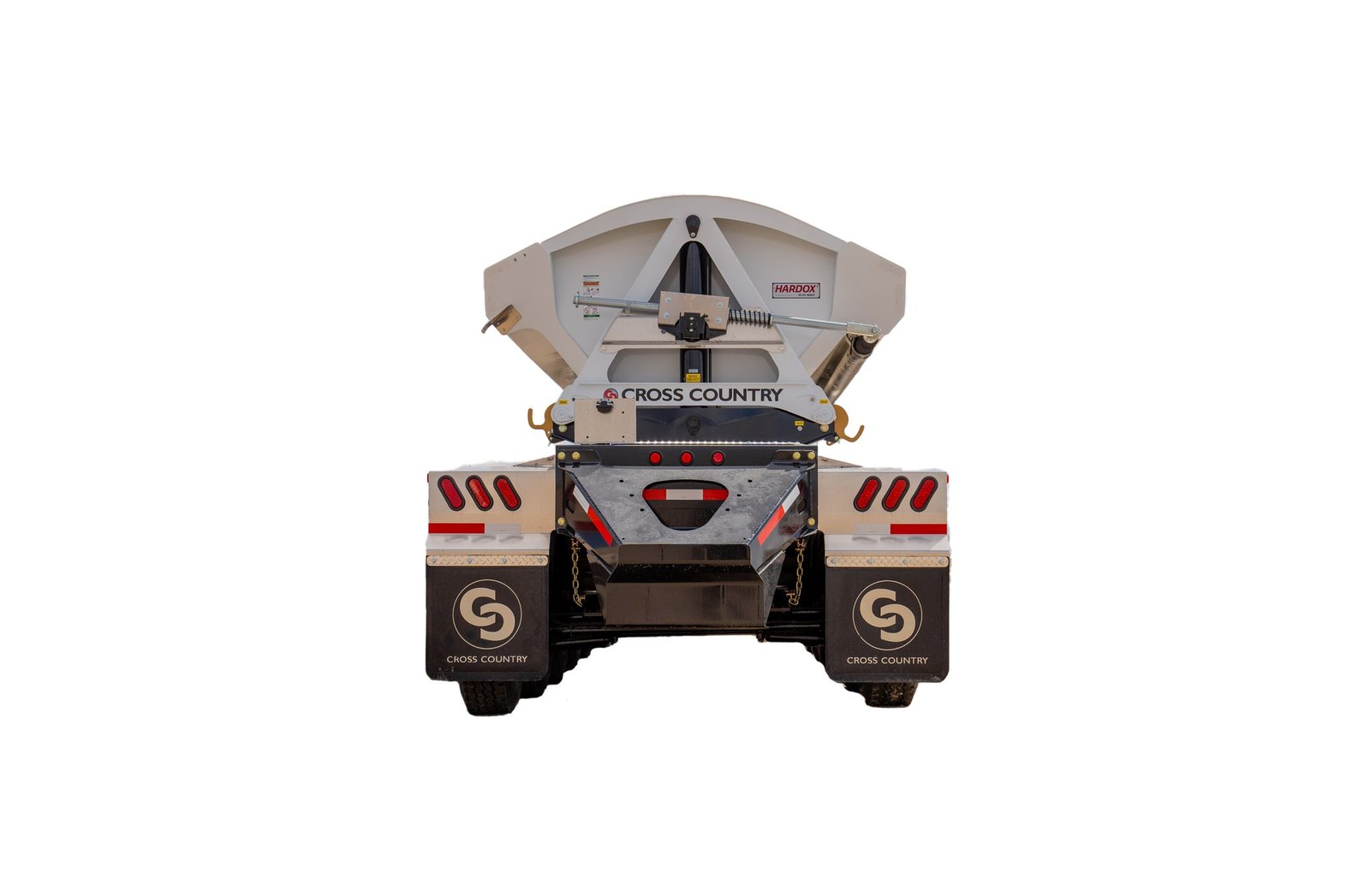

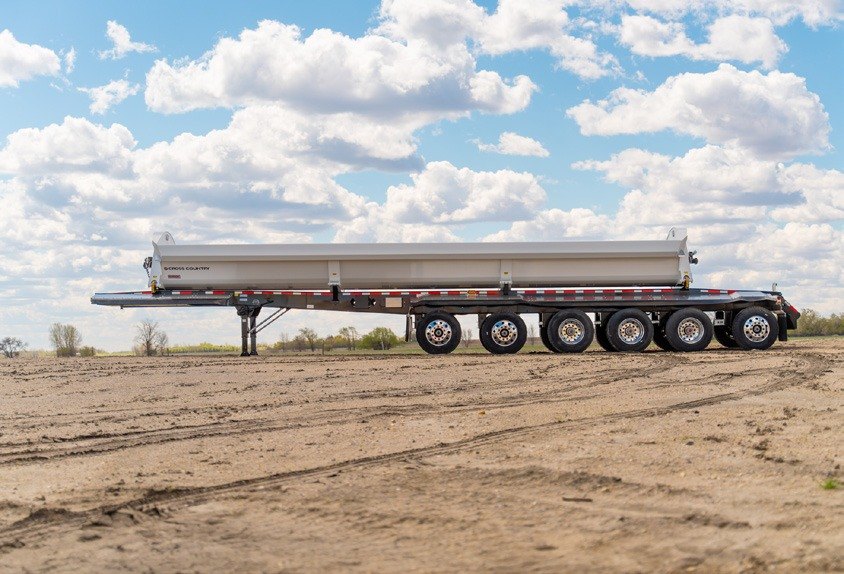

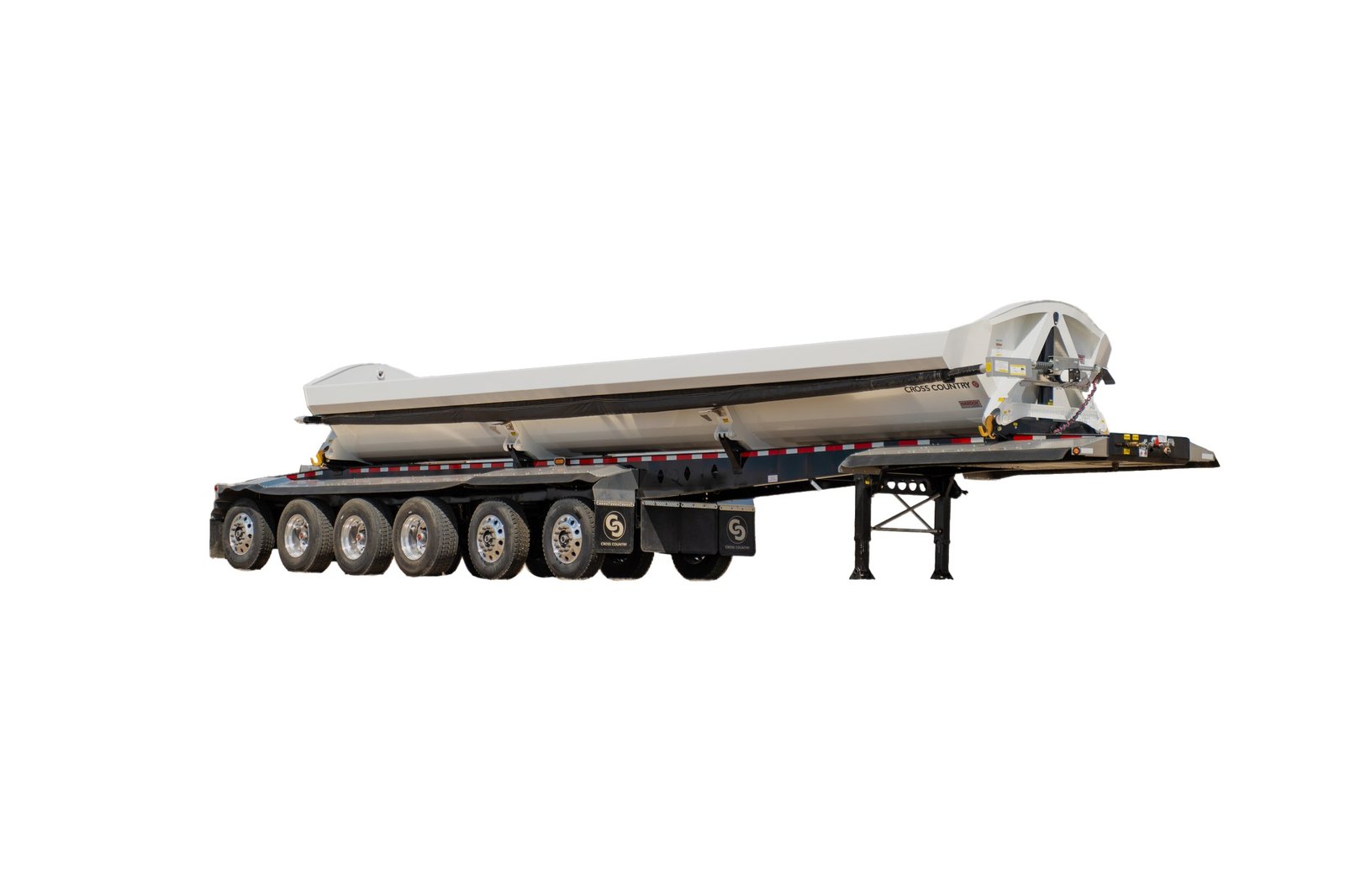

The 536SDX is Cross Country's 53' 6-axle side dump, built for heavy loads of aggregate, sand and bulk material. It unloads to the side without raising the tub: more stable and safer on job sites and near power lines.

• Hardox 450 tub with flex corners that prevent cracking, no centre divider;
• 100,000 psi high-tensile Strenx frame and top sill: lower tare weight, more payload;
• 30,000 lb Hendrickson air ride and wider track axles for stability;
• Hendrickson Composilite steerable lift axles;
• 6'' cylinders and A-frame pedestal for strong, controlled dumping;
• Electric side-roll tarp protected by the top rail;
• Built in Canada, certified “Hardox® In My Body”.

Available from 2 to 7 axles and in train spec. Financing available.

Available options

• Wired or wireless tarp controller
• Sidewall extension kit
• Vinyl tarp
• Tarp safety lock-out switch
• Double/train spec (pintle hook, hydraulic, air and electrical for pup)
• Dual or wide-base aluminum wheels
• Lift axles
• Strobe lights
• Custom colours

Regulations: permitted lengths, axle loads and configurations differ by province (Quebec, Ontario, New Brunswick, Western Canada). Some models or options are not road-legal as is in Quebec; we validate the compliant configuration with you before ordering.
